PUNCTUAL ANCHORAGE SYSTEM
Punctual anchorage is a simple fixing system for ventilated rainscreen claddings. Each element is fixed on two bearing anchors and two restraint anchors in the upper part. Depending on the used method and facade design, stainless steel anchors are hidden in the horizontal or vertical gaps.
When to choose punctual anchorage?
DISTANCE BETWEEN THE DOWEL AND BACKING WALL FACE
Minimum 40mm
Maximum 240mm
BACKING WALL MATERIAL
Concrete minimum 150mm thickness
Brick minimum 180mm thickness
LOAD
Maximum Fz = 1600N/anchor
PRODUCT TYPES

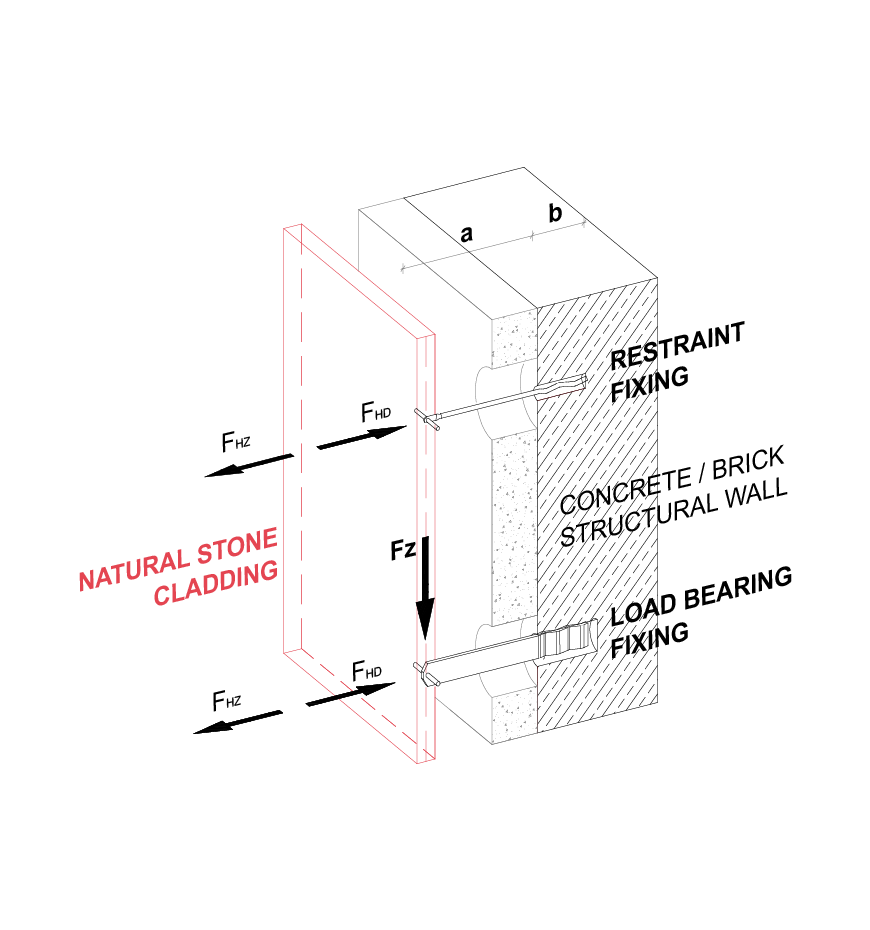

HORIZONTAL JOINTS ANCHORING
Each elements is hung and secured on a dowel on each fixing.
On regular rainscreen claddings, load bearing fixings are working as a restraint fixing for the lower element.
Minimum thickness of sandstone element: 40mm
Typical joint width: 8mm
amin = 40mm
amax = 240mm
Fz min = 100N
Fz max = 1600N
LOAD BEARING FLAT FIXING
For horizontal fixing.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 240 mm
Max. load (Fz): 1200 N
LOAD BEARING TUBE FIXING
Tubes are for horizontal and vertical fixings.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 200 mm
Max. load (Fz): 1600 N
RESTRAINT FIXING
Non load bearing - for horizontal forces.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 240 mm
LOAD BEARING FLAT FIXING
For horizontal fixing.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 240 mm
Max. load (Fz): 1200 N
LOAD BEARING TUBE FIXING
Tubes are for horizontal and vertical fixings.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 200 mm
Max. load (Fz): 1600 N
RESTRAINT FIXING
Non load bearing - for horizontal forces.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 240 mm
Each fixing comes in 7 different types. For more information about support systems, please contact us.
Material type: Stainless steel 1.4301 / 1.4401 / 1.4571
VERTICAL JOINTS ANCHORING
Vertical joints anchoring is used for panels in a horizontal row or other situations where the horizontal fixing must be hidden.
It works similar to horizontal anchoring.
Minimum thickness of sandstone element: 40mm
Typical joint width: 8mm
LOAD BEARING FLAT FIXING
For horizontal fixing.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 240 mm
Max. load: 1200 N
LOAD BEARING TUBE FIXING
Tubes are for horizontal and vertical fixings.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 200 mm
Max. load: 1600 N
RESTRAINT FIXING
Non load bearing - for horizontal forces.
Wall type: Concrete min. C16/20
Min. wall thickness: 150 mm
Distance: 40 - 240 mm
LOAD BEARING FLAT FIXING
For horizontal fixing.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 240 mm
Max. load: 1200 N
LOAD BEARING TUBE FIXING
Tubes are for horizontal and vertical fixings.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 200 mm
Max. load: 1600 N
RESTRAINT FIXING
Non load bearing - for horizontal forces.
Wall type: Brick - min. 15Mpa
Min. wall thickness: 180 mm
Distance: 40 - 240 mm
Each fixing comes in 7 different types. For more information about support systems, please contact us.
Material type: Stainless steel 1.4301 / 1.4401 / 1.4571
OTHER TYPES OF ANCHORING
In addition, we are able to adjust the stone elements to numerous types of fixings. For more information about support systems, please contact us.
