FRAMEWORK SUPPORT SYSTEM
A framing system for ventilated rainscreen claddings is comprised of a grid of vertical and horizontal stainless steel profiles. It is used for facades with a big cavity between the backing wall and stone cladding, curved forms or when the backing wall is a non-load bearing wall.
When to choose framework support?
DISTANCE BETWEEN THE DOWEL AND BACKING WALL FACE
More than 240mm
BACKING WALL MATERIAL
Non load bearing wall
Concrete floor slab
OTHER CASES WHEN USE OF PUNCTUAL SYSTEM IS IMPOSSIBLE

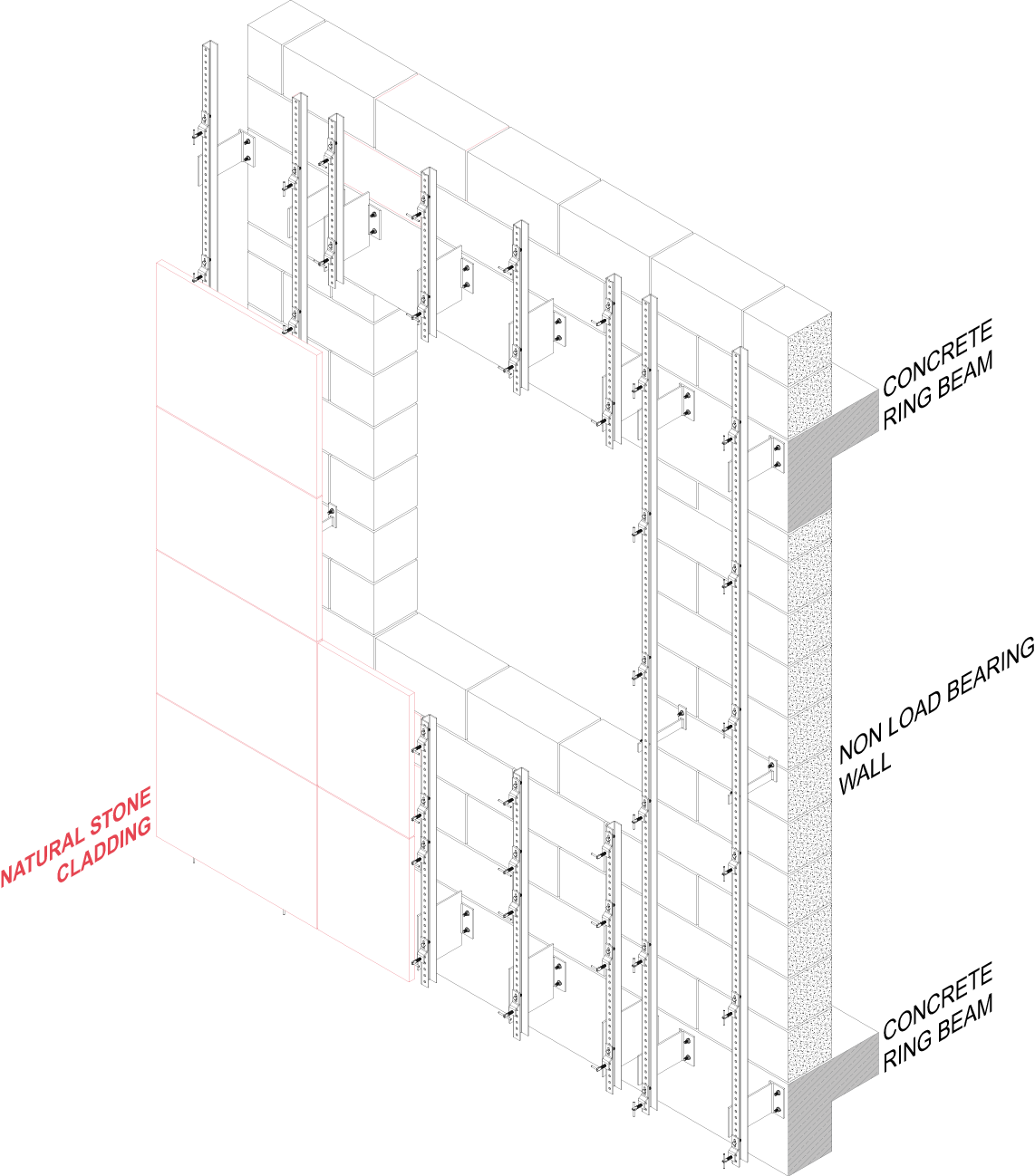

Vertical profiles are attached with sockets to the concrete ring beams and restraint anchors to the backing wall to provide stiffness of the substructure.
Rainscreen panels are hung from and secured to the vertical profiles with hangers and adjustable hangers.
Minimum thickness of sandstone element: 40mm
Typical joint width: 8mm
